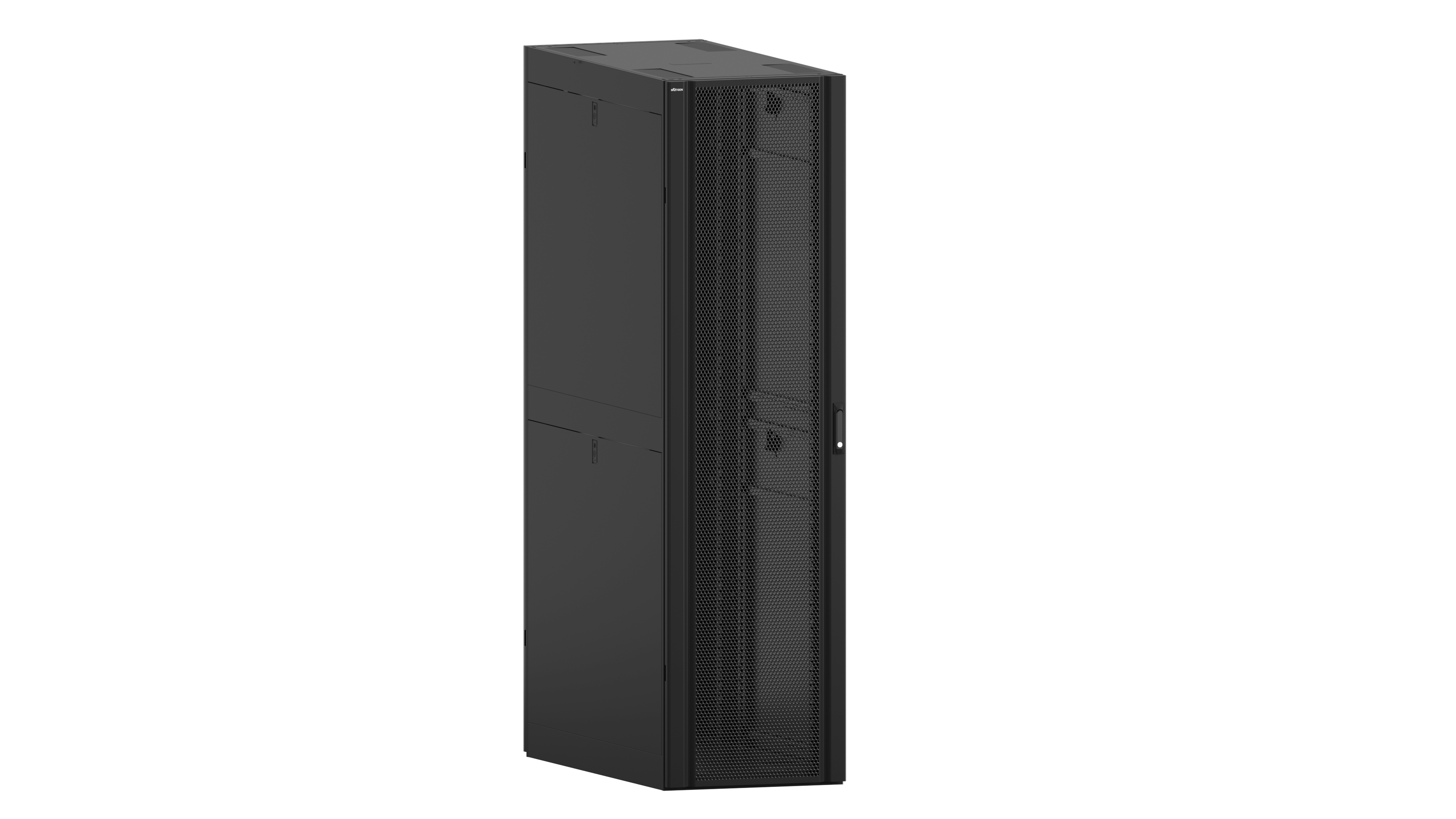

NXTGEN Rack
Next-Generation Data Center Rack for Flexible, High-Density Deployments
The NXTGEN Rack is engineered for today's high-performance data centers that demand precision, scalability, and speed. With full customization options and agile production scheduling, it enables seamless deployment - on time, on spec, and without compromise.
Key Advantages
Designed to Adapt. Built to Deliver.
Flexible Customization
Configure your rack your way. Multiple height, width, and depth options with a complete range of accessories ensuring a perfect fit for any data center layout and cooling design.
Agile Lead Time
Deliver faster, deploy sooner. Production and delivery can be expedited or partially shipped according to project timelines, keeping your rollout on track even under tight schedules.
High Reliability
Trust in strength and standards. Supporting up to 1800 kg (3958 lb) static load and certified to EIA-310E, CE, and RoHS, the NXTGEN Rack is built to perform under demanding conditions.
Built for Modern Data Centers
Purpose-built for high-density and high-efficiency environments, the NXTGEN Rack maximizes usable space, simplifies cable management, and enhances airflow performance.
From Al computing clusters to enterprise and edge data centers, it delivers the perfect balance of flexibility, reliability, and speed to support your next-generation IT infrastructure.
Technical Specifications
| Feature | Specification |
|---|---|
| Rack Units | 42U/45U/48U/52U |
| Width | 600 mm (23.6 in) / 800 mm (31.5 in) |
| Depth | 1000 mm/1100 mm / 1200 mm / 1400 mm |
| Static Load Capacity | 1800 kg (3958 lb) |

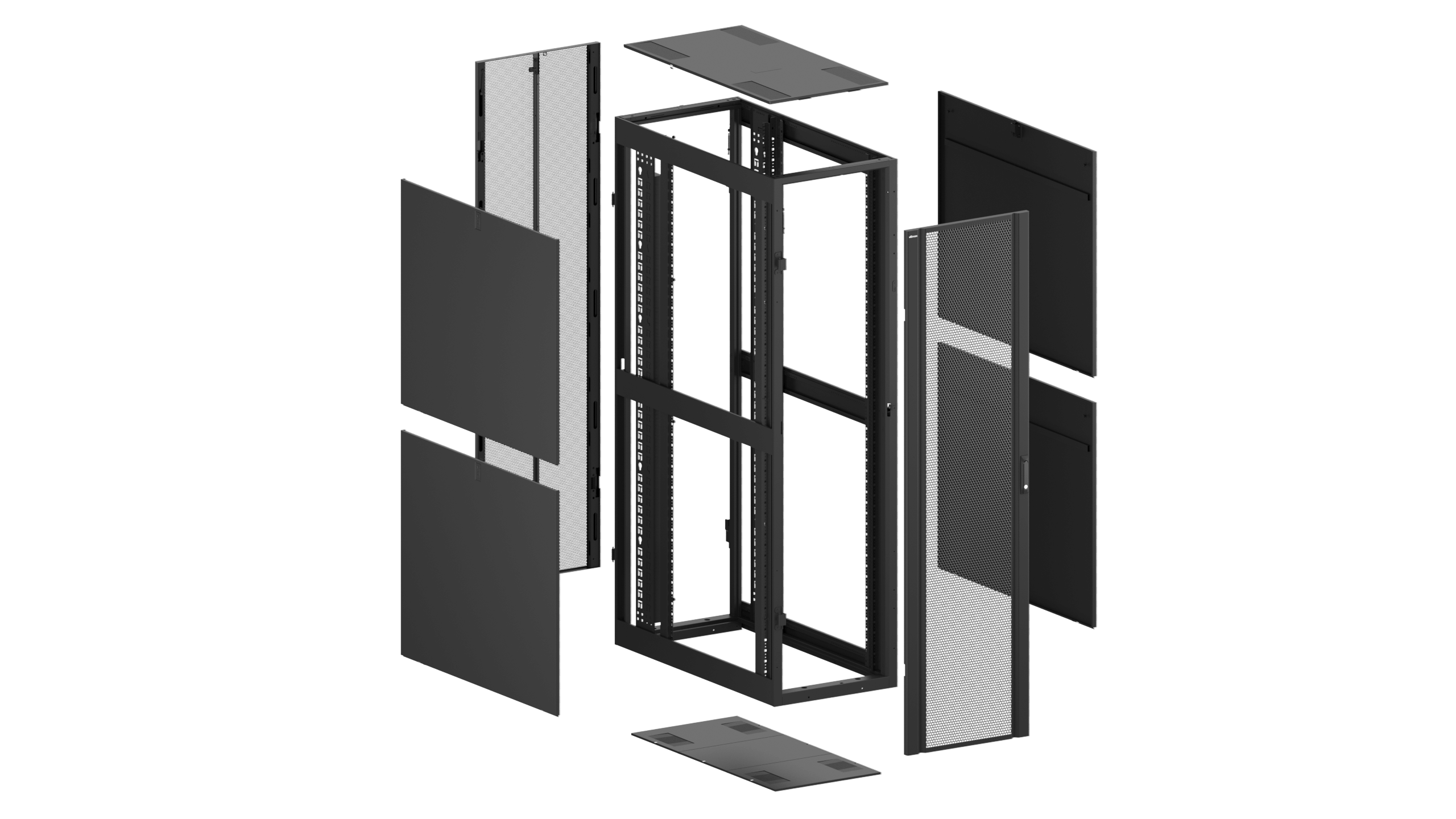

| Standard Configuration | Frame, Doors, Side Panels, Roof, Leveling Feet, Castors, 19" Mounting Rails, Cage-nut Kit |
| Optional Accessories | Vertical/Horizontal Cable Managers, Side Trough, Air Dam Kit, Overhead Ladder Support Kits, Bottom and Brushed Panels, Rear Extension Frame |
| Color | Black (standard) or custom colors |
| Conformance | EIA-310E, CE, ROHS |
| Warranty | 3 years |
