Downspout - NXTGEN

fiberflow ^®

fiber management system

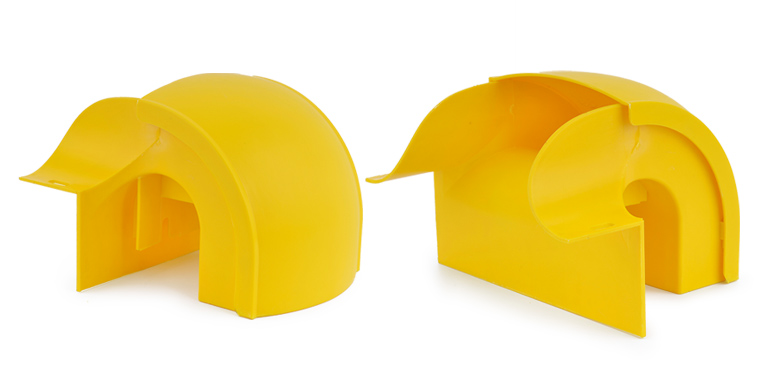

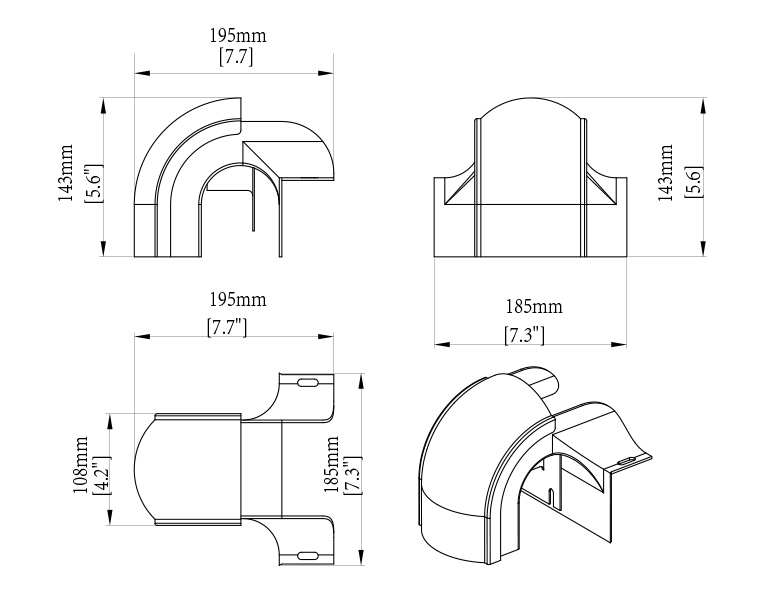

90 Movable Exit W/O corrugated pipe Kit

item no.: ADK01 Material: PVC/ABS

Assembles onto 4"x5",4"x10",4"x15" channel, spilling over the side into a 90mm movable exit without corrugated pipe

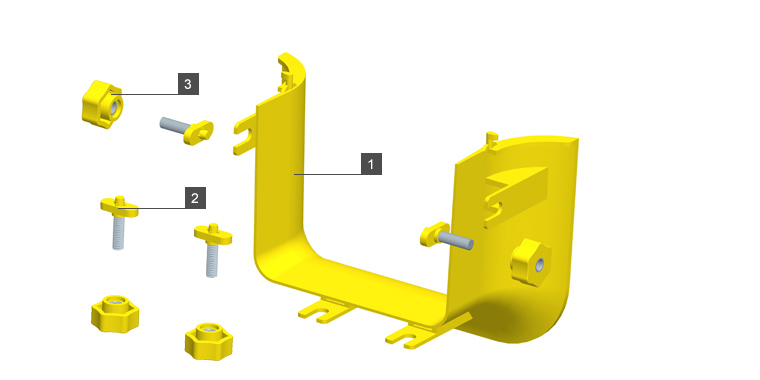

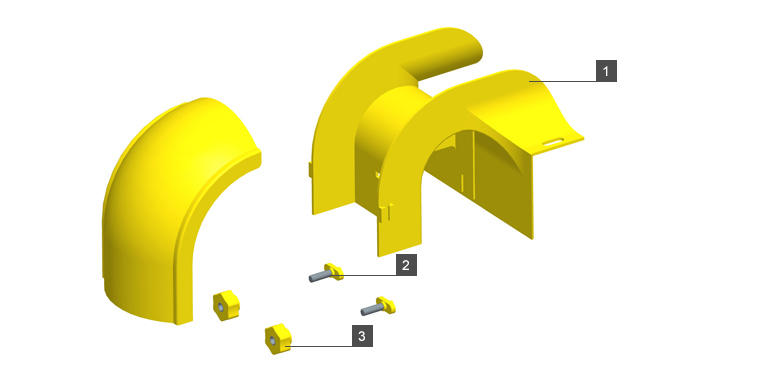

1.AD01 90 Movable Exit x1

2.AF35 T-shape Screw x2

3.AF33 Plastic Twist Nut x2

Preview Image

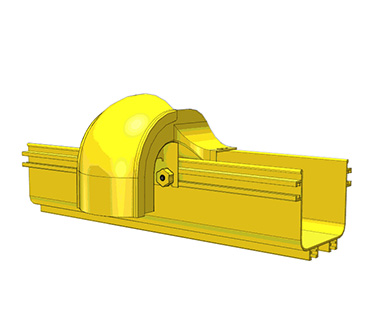

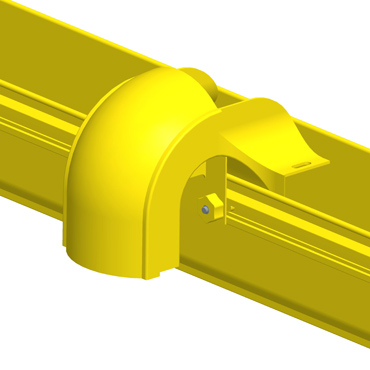

Installation demonstration

90 Movable Exit with corrugated pipe Kit

item no.: ADK02 Material: PVC/ABS

Assembles onto 4"x5",4"x10",4"x15" channel, spilling over the side into a 90mm movable exit with corrugated pipe

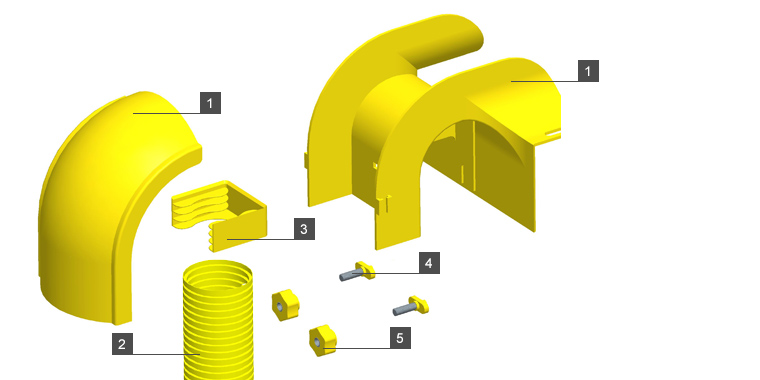

1.AD01 90 Movable Exit x1

2.AD03 Corrugated Pipe x1

3.AD05 Pipe Fixer x1

4.AF35 T-shape Screw x2

5.AF33 Plastic Twist Nut x2

Preview Image

Installation demonstration

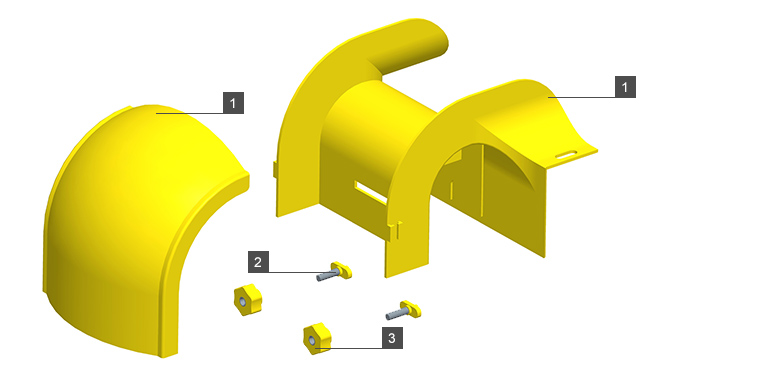

130 Movable Exit Kit

item no.: ADK03 Material: PVC/ABS

Assembles onto 4"x5",4"x10",4"x15" channel, spilling over the side into a 130mm movable exit

1.AD02 130 Movable Exit x1

2.AF35 T-shape Screw x2

3.AF33 Plastic Twist Nut x2

Preview Image

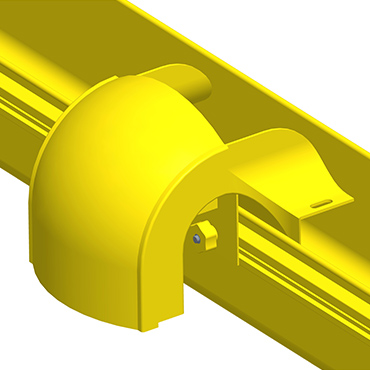

Installation demonstration

120 Trumpet Spillout kit

item no.: ADK04 Material: PVC/ABS

Used to limit the bend radius of the cable to 2" (50.8mm) when exiting from 4"x5" channel,4"x5" horizontal tee fitting, or 4"x5" exit on 4"x10" vertical tee.

1.1.AD04 120 Trumpet Spillout x1

2.AF35 T-shape Screw x2

3.AF33 Plastic Twist Nut x2

Preview Image

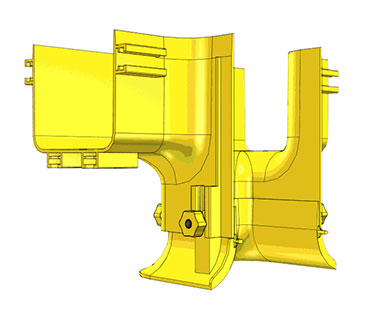

Installation demonstration
