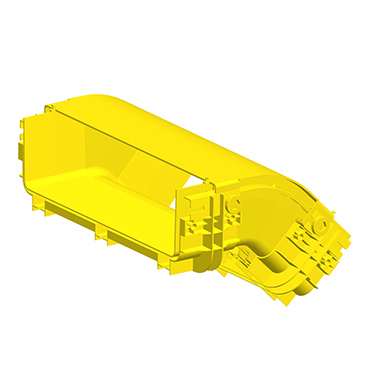

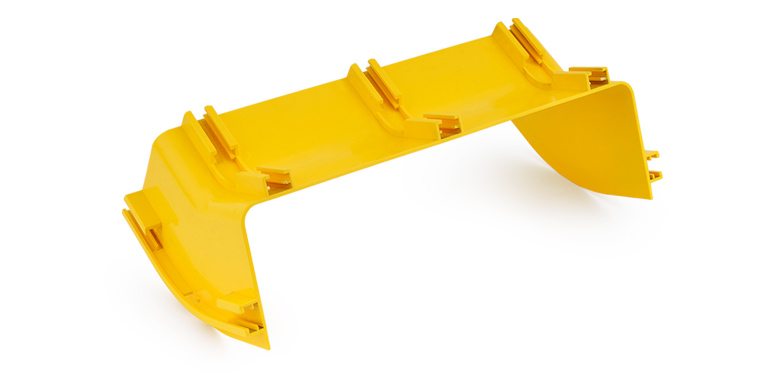

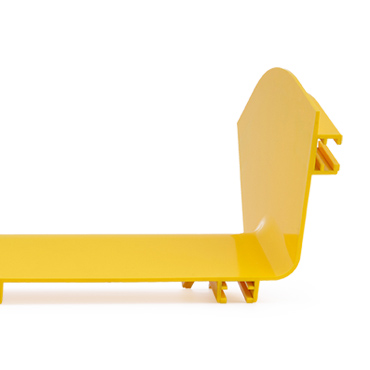

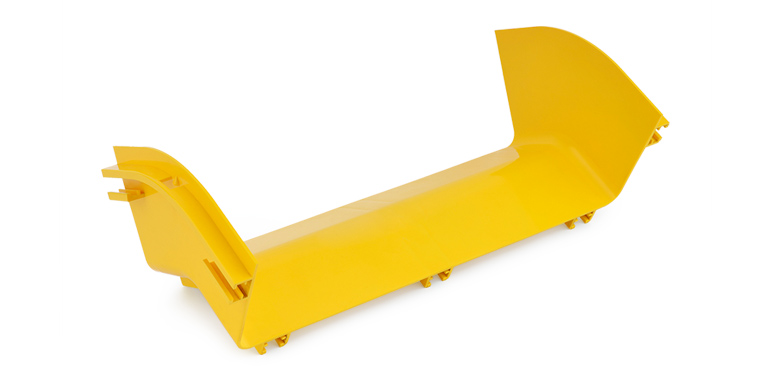

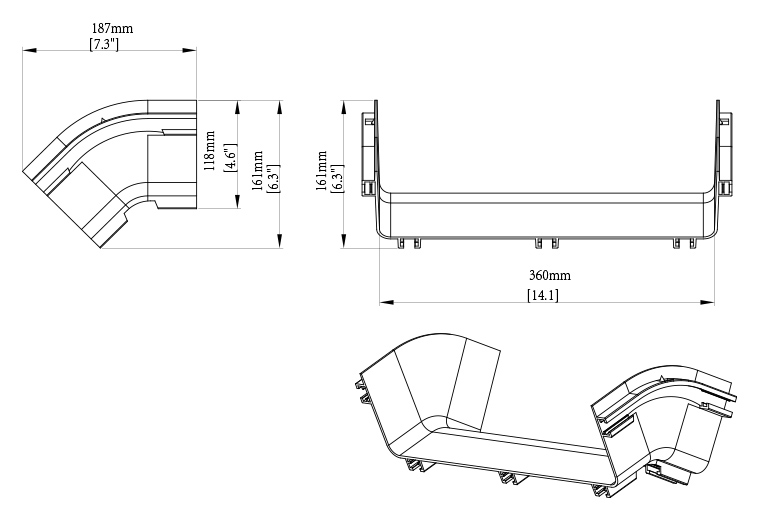

360 45° Down Elbow
item no.: AF37 Material: PVC/ABS
Attaches to 4"x15" channel and/or fitting to create a 45° downward angle from a straight horizontal run. Used with 45° up elbow to change level of a horizontal run.
Installation demonstration

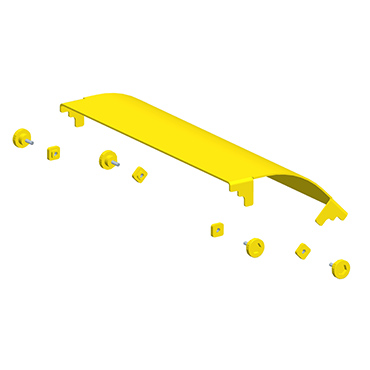

360 45° Down Elbow Cover item no.: AF42

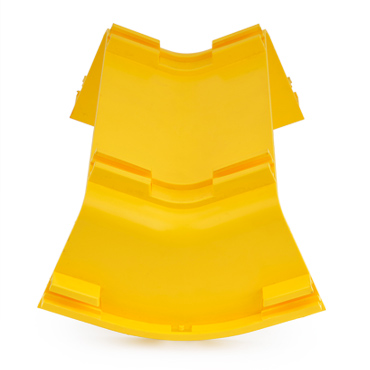

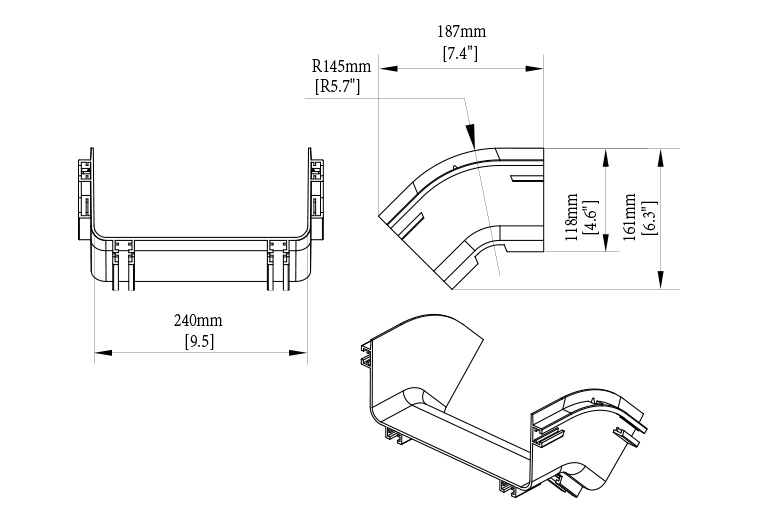

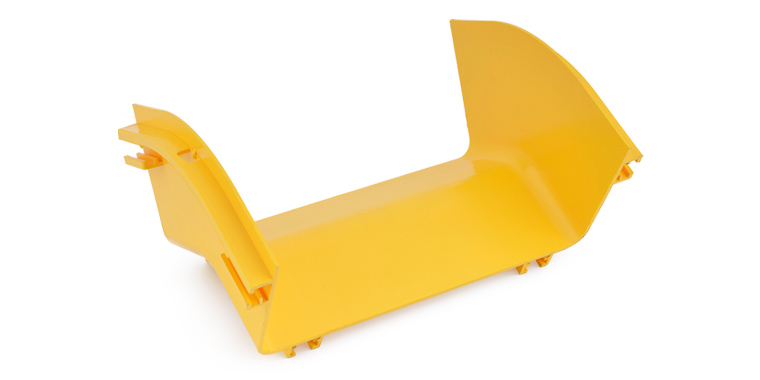

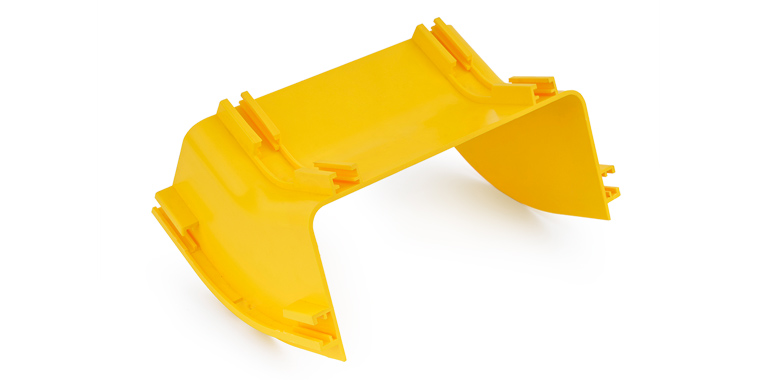

240 45° Down Elbow
item no.: AF13 Material: PVC/ABS
Attaches to 4"x10" channel and/or fitting to create a 45° downward angle from a straight horizontal run. Used with 45° up elbow to change level of a horizontal run.
Installation demonstration

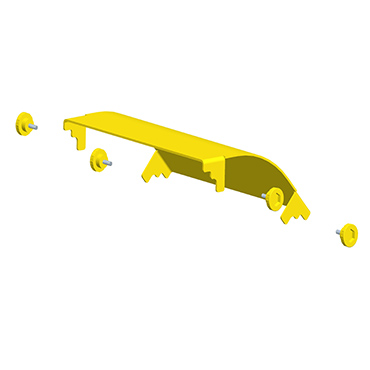

240 45° Down Elbow Cover item no.: AF48

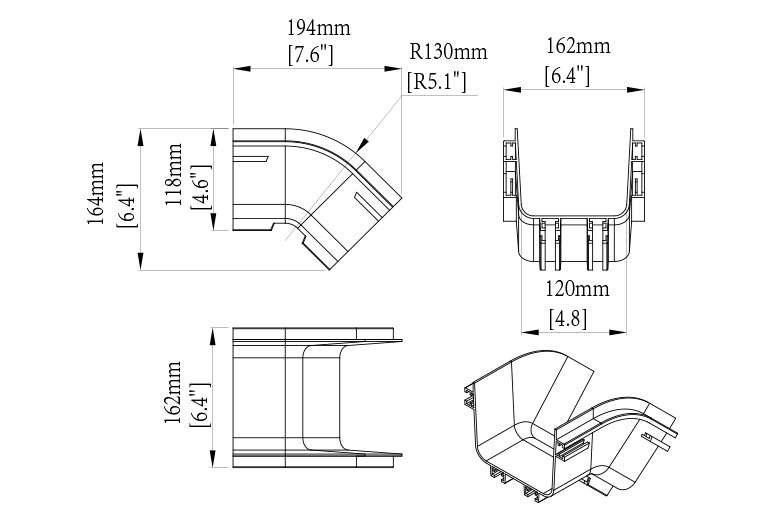

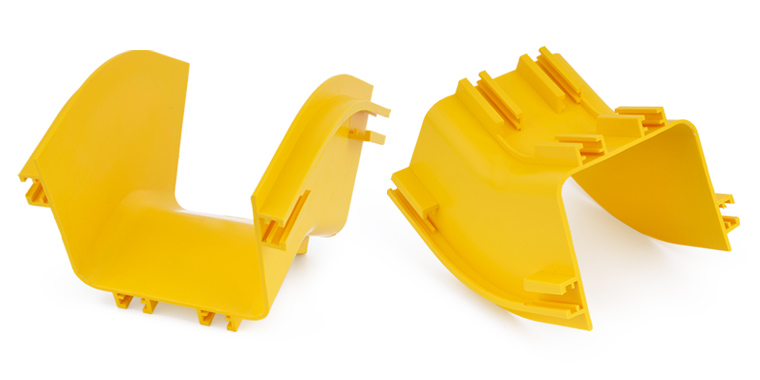

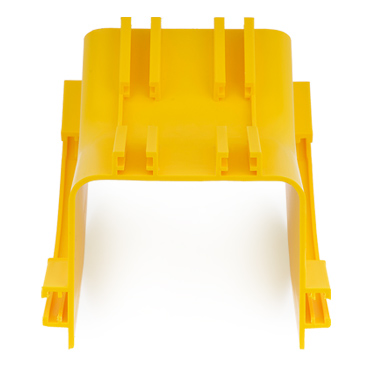

120 45° Down Elbow
item no.: AF23 Material: PVC/ABS
Attaches to 4"x5" channel and/or fitting to create a 45° downward angle from a straight horizontal run. Used with 45° up elbow to change level of a horizontal run.

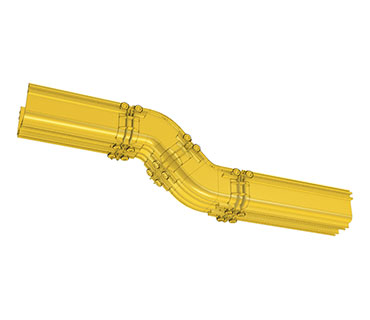

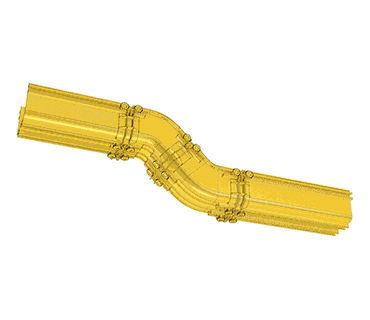

Installation demonstration

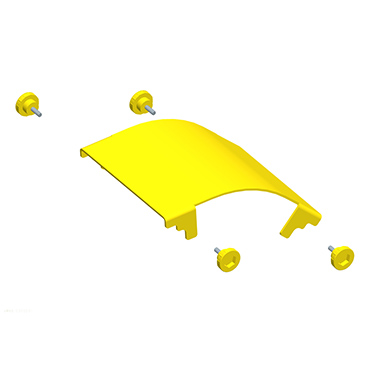

120 45° Down Elbow Cover item no.: AF54
