Coupler Kit

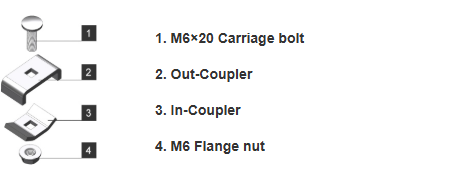

Coupler Kit includes a out-coupler, an in-coupler,a M6x20 carriage bolt and a M6 flange nut.
- Be used to all of straight sections connection.
- Can be sold individually.
| Item Name | Weight | Electroplate | HDG | Powder Coating | 304 Stainless Steel | 316L Stainless Steel | |
|---|---|---|---|---|---|---|---|
| lbs | kg | ||||||
| Coulper Kit | BFK011 | BFK012 | BFK013 | BFK014 | BFK015 | ||
| M6×20 Carriage Bolt | T011 | - | - | T014 | T015 | ||
| Out-coupler | BF011 | BF012 | BF013 | BF014 | BF015 | ||
| In-coupler | BF021 | BF022 | BF023 | BF024 | BF025 | ||
| M6 Flange Nut | T021 | - | - | T024 | T025 | ||

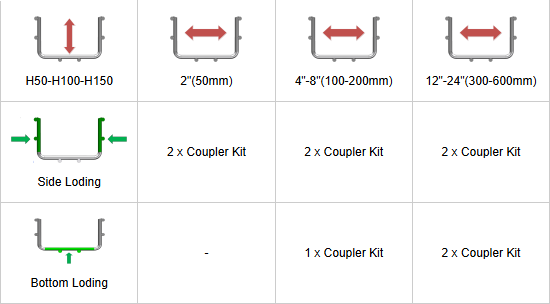

SCOPE OF APPLICATION AND QUANTITY

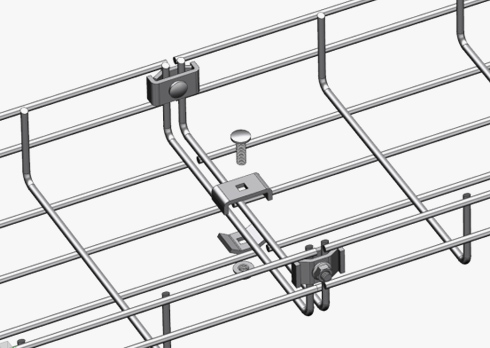

OPERATING STEPS
