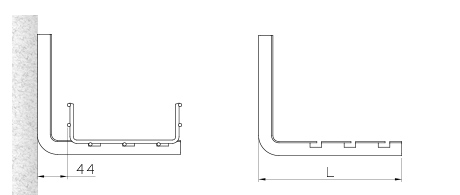

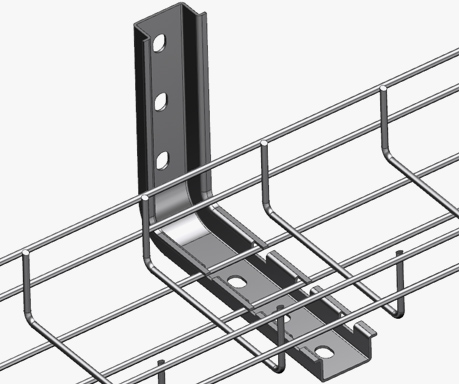

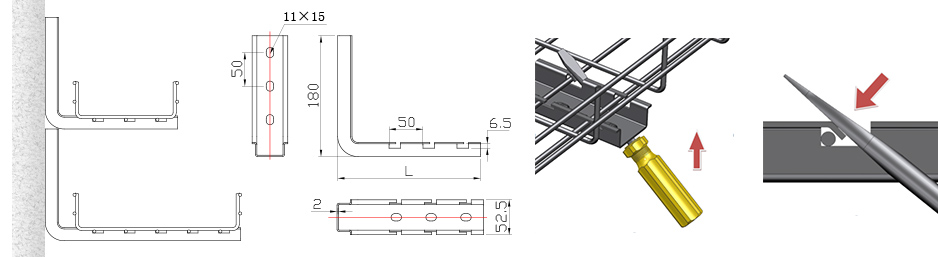

Wall T-Bracket
- Used to mount to wall with expansion bolt.
- Ensure the distance between the wall
- Can be use to construct multi-storey bridge.
- Matching the arm- length with the width of the wire tray.
- Can be sold individually.
| Item Name |
Wire tray Width |
Trapeze Length |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
| lbs |
kg |
| W100 Wall T-Bracket | 100 | 160 | | | BF611 | BF612 | BF613 | BF614 | BF615 |
| W150 Wall T-Bracket | 150 | 210 | | | BF621 | BF622 | BF623 | BF624 | BF625 |
| W200 Wall T-Bracket | 200 | 260 | | | BF631 | BF632 | BF633 | BF634 | BF635 |
| W300 Wall T-Bracket | 300 | 360 | | | BF641 | BF642 | BF643 | BF644 | BF645 |
| W400 Wall T-Bracket | 400 | 460 | | | BF651 | BF652 | BF653 | BF654 | BF655 |
