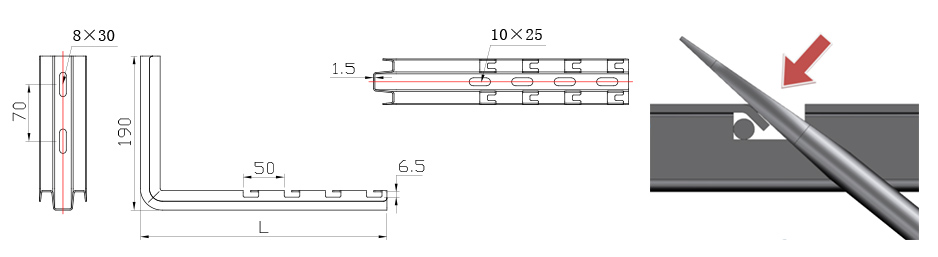

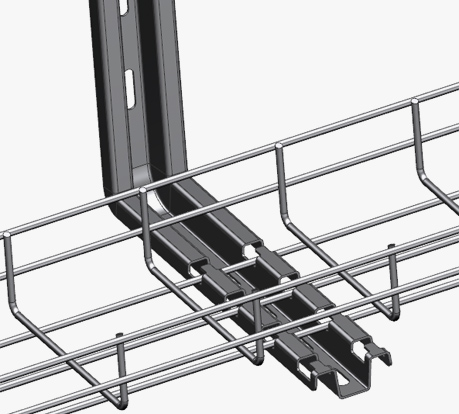

Wall M-Bracket
- High supporting strength.
- Used to mount to wall with expansion bolt.

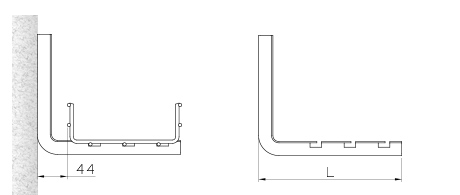

- Ensure the distance between the wall.
- Can be use to construct multi-storey bridge.
- Matching the arm- length with the width of the wire tray .
- Can be sold individually.
| Item Name |
Wire tray Width |
Trapeze Length |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
| lbs |
kg |
| W100 Wall M-Bracket | 100 | 160 | | | BF661 | BF662 | BF663 | BF664 | BF665 |
| W150 Wall M-Bracket | 150 | 210 | | | BF671 | BF672 | BF673 | BF674 | BF675 |
| W200 Wall M-Bracket | 200 | 260 | | | BF681 | BF682 | BF683 | BF684 | BF685 |
| W300 Wall M-Bracket | 300 | 360 | | | BF691 | BF692 | BF693 | BF694 | BF695 |
| W400 Wall M-Bracket | 400 | 460 | | | BF701 | BF702 | BF703 | BF704 | BF705 |
