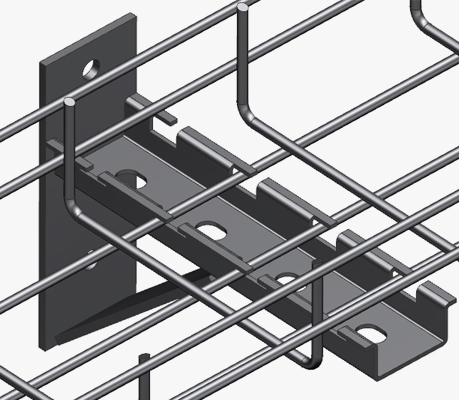

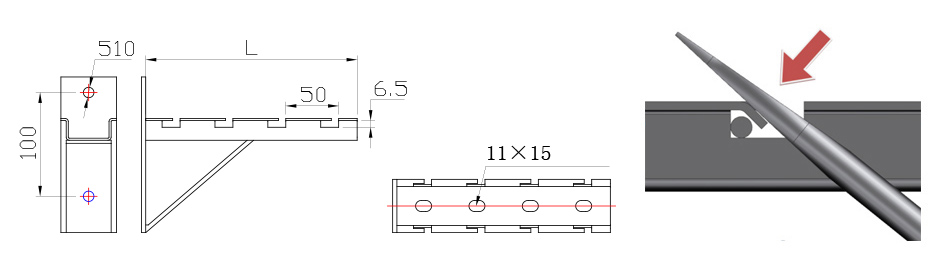

Triangle T Bracket
- Weld assembly, used to mount to wall with expansion bolt.

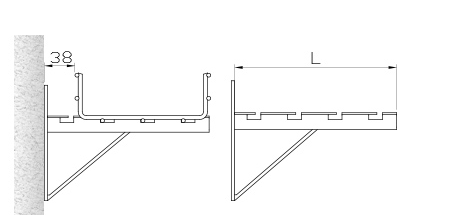

- Matching the arm- length with the width of the wire tray .
- Can be sold individually.
| Item Name |
Wire tray Width |
Trapeze Length |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
| lbs |
kg |
| W100 Triangle T-Bracket | 100 | 150 | | | BF711 | BF712 | BF713 | BF714 | BF715 |
| W150 Triangle T-Bracket | 150 | 200 | | | BF721 | BF722 | BF723 | BF724 | BF725 |
| W200 Triangle T-Bracket | 200 | 250 | | | BF731 | BF732 | BF733 | BF734 | BF735 |
| W300 Triangle T-Bracket | 300 | 350 | | | BF741 | BF742 | BF743 | BF744 | BF745 |
