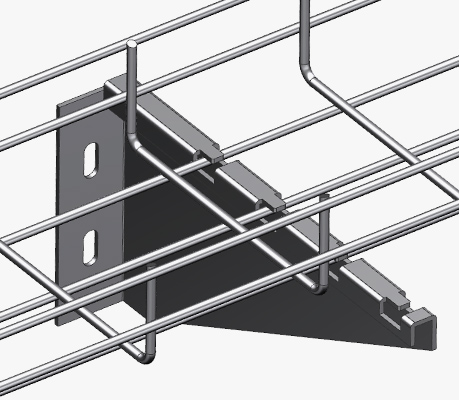

Triangle-N-Bracket
- Weld assembly, used to mount to wall with expansion bolt.
- Provide a variety of screw position.Expansion screws can be increased or decrease according to the need.

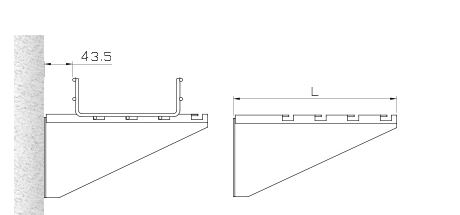

- Matching the arm- length with the width of the wire tray .
- Can be sold individually.
| Item Name |
Wire tray Width |
Trapeze Length |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
| lbs |
kg |
| W100 Triangle N-Bracket | 100 | 200 | | | BF761 | BF762 | BF763 | BF764 | BF765 |
| W150 Triangle N-Bracket | 150 | 250 | | | BF771 | BF772 | BF773 | BF774 | BF775 |
| W200 Triangle N-Bracket | 200 | 300 | | | BF781 | BF782 | BF783 | BF784 | BF785 |
| W300 Triangle N-Bracket | 300 | 400 | | | BF791 | BF792 | BF793 | BF794 | BF795 |
| W400 Triangle N-Bracket | 400 | 500 | | | BF801 | BF802 | BF803 | BF804 | BF805 |
