Strengthening Bar Kit

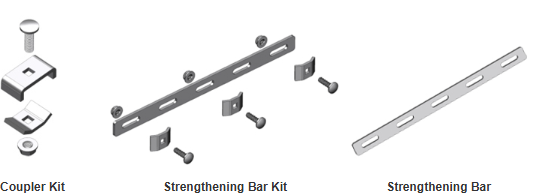

Strengthening Bar Kit includes a strengthening bar,three in-couplers, three M6x20 carriage bolts and three M6 nuts.

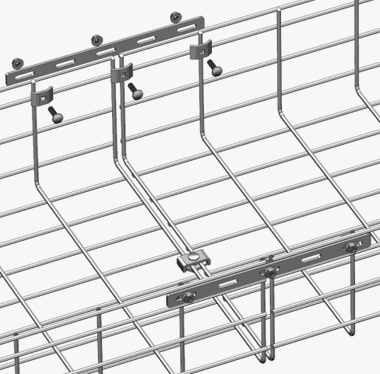

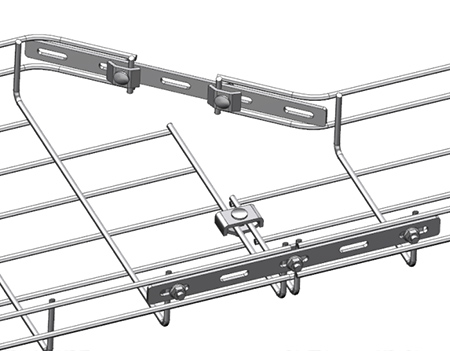

- Be used to connect the straight sections in the horizontal direction.
- Can be sold individually.
| Item Name | Weight | Electroplate | HDG | Powder Coating | 304 Stainless Steel | 316L Stainless Steel | |
|---|---|---|---|---|---|---|---|
| lbs | kg | ||||||
| Strengthening Bar Kit | BFK021 | BFK022 | BFK023 | BFK024 | BFK025 | ||
| Strengthening Bar | BF031 | BF032 | BF033 | BF034 | BF035 | ||
| Coupler Kit | BFK011 | BFK012 | BFK013 | BFK014 | BFK015 | ||

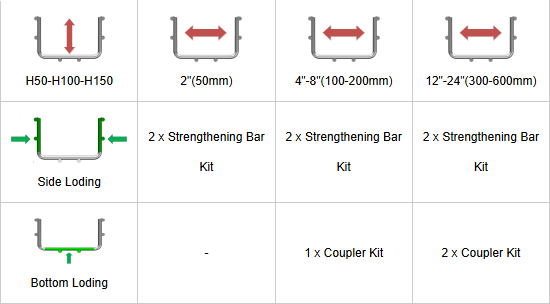

SCOPE OF APPLICATION AND QUANTITY
OPERATING STEPS
