installation

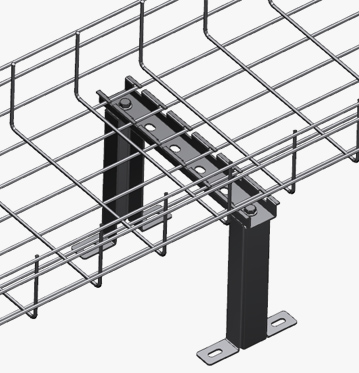

Bridge Stand Bracket Kit

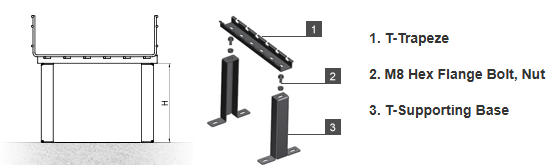

Bridge Stand Bracket Kit includes a T-Trapeze ,two M8x16 hex flange bolts and two M8 hex flange nuts. Apply to ground, underfloor or top of the cabinet install

  • The width 100mm-600mm wire tray and the T-trapeze matching.

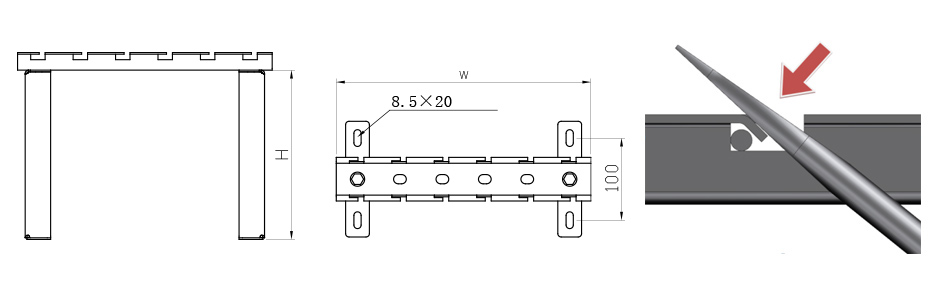

  • Support without screw, Fixed with bending protrusion.
  • Can be sold individually.
detail
Item Name Weight Electroplate HDG Powder Coating 304 Stainless Steel 316L Stainless Steel
lbs kg
H50 Bridge Stand Bracket Kit  BFK211BFK212BFK213BFK214BFK215
H100 Bridge Stand Bracket Kit  BFK221BFK222BFK223BFK224BFK225
H150 Bridge Stand Bracket Kit  BFK231BFK232BFK233BFK234BFK235
H200 Bridge Stand Bracket Kit  BFK241BFK242BFK243BFK244BFK245
T-Supporting Base  BF901BF902BF903BF904BF905
M8 Hex Flange Bolt  T511--T514T515
M8 Hex Flange Nut  T611--T614T615
W100 T-Trapeze  BF211BF212BF213BF214BF215
W200 T-Trapeze  BF221BF222BF223BF224BF225
W300 T-Trapeze  BF231BF232BF233BF234BF235
W400 T-Trapeze  BF241BF242BF243BF244BF245
W500 T-Trapeze  BF251BF252BF253BF254BF255
W600 T-Trapeze  BF261BF262BF263BF264BF265
