T-Trapeze

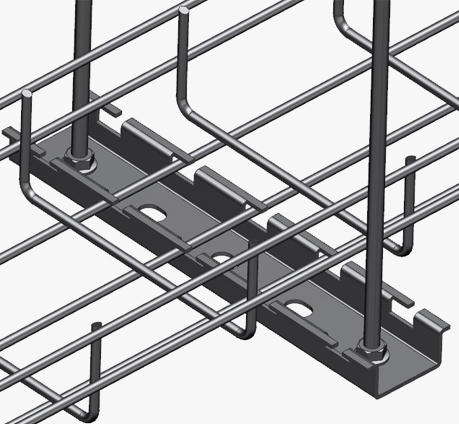

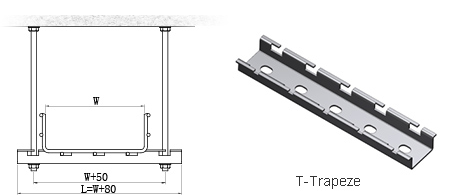

Fix the wire tray on the threaded rod with nuts, hanging from the ceiling. Matching Length of Trapeze with width of wire tray (L=W + 80).
- Fits max M10 threaded rod.

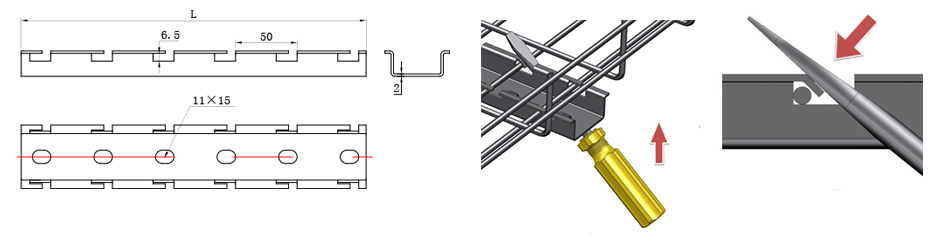

- Support without screw, Fixed with bending protrusion.
- Can be sold individually.
| Item Name | Wire tray Width | Trapeze Length | Weight | Electroplate | HDG | Powder Coating | 304 Stainless Steel | 316L Stainless Steel | |
|---|---|---|---|---|---|---|---|---|---|
| lbs | kg | ||||||||
| W100 T-Trapeze | 100 | 180 | BF211 | BF212 | BF213 | BF214 | BF215 | ||
| W200 T-Trapeze | 200 | 280 | BF221 | BF222 | BF223 | BF224 | BF225 | ||
| W300 T-Trapeze | 300 | 380 | BF231 | BF232 | BF233 | BF234 | BF235 | ||
| W400 T-Trapeze | 400 | 480 | BF241 | BF242 | BF243 | BF244 | BF245 | ||
| W500 T-Trapeze | 500 | 580 | BF251 | BF252 | BF253 | BF254 | BF255 | ||
| W600 T-Trapeze | 600 | 680 | BF261 | BF262 | BF263 | BF264 | BF265 | ||
