M-Trapeze

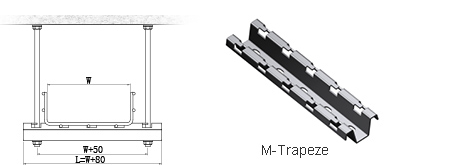

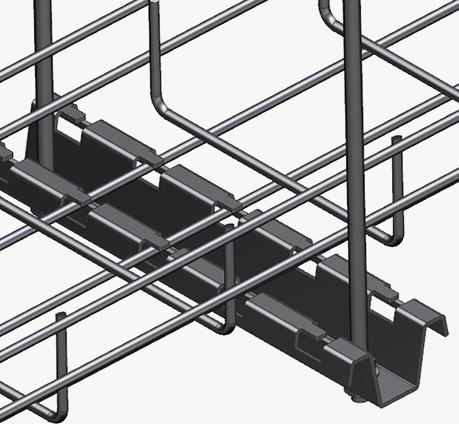

Fix the wire tray on the threaded rod with nuts, hanging from the ceiling. Matching Length of Trapeze with width of wire tray (L=W + 80).
- Supporting strength is higher than T-trapeze
- Fits max M10 threaded rod.

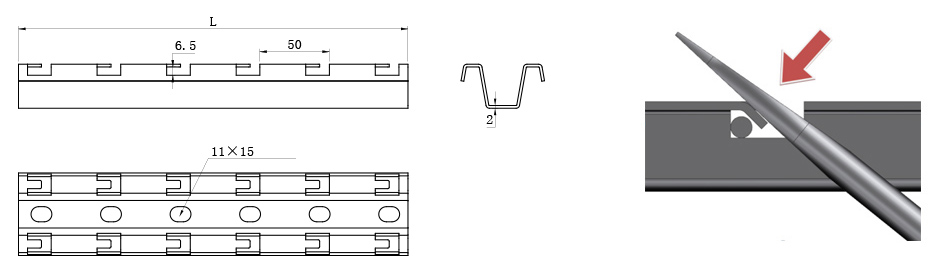

- Support without screw, Fixed with bending protrusion.
- Can be sold individually.
| Item Name | Wire tray Width | Trapeze Length | Weight | Electroplate | HDG | Powder Coating | 304 Stainless Steel | 316L Stainless Steel | |
|---|---|---|---|---|---|---|---|---|---|
| lbs | kg | ||||||||
| W100 M-Trapeze | 100 | 180 | BF311 | BF312 | BF313 | BF314 | BF315 | ||
| W200 M-Trapeze | 200 | 280 | BF321 | BF322 | BF323 | BF324 | BF325 | ||
| W300 M-Trapeze | 300 | 380 | BF331 | BF332 | BF333 | BF334 | BF335 | ||
| W400 M-Trapeze | 400 | 480 | BF341 | BF342 | BF343 | BF344 | BF345 | ||
| W500 M-Trapeze | 500 | 580 | BF351 | BF352 | BF353 | BF354 | BF355 | ||
| W600 M-Trapeze | 600 | 680 | BF361 | BF362 | BF363 | BF364 | BF365 | ||
