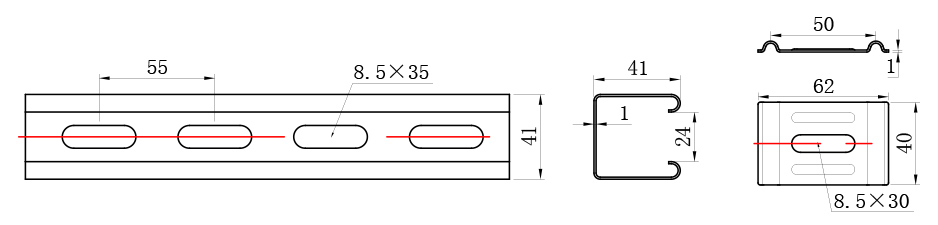

C-Trapeze

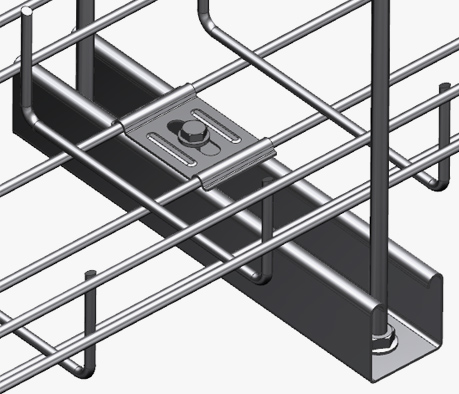

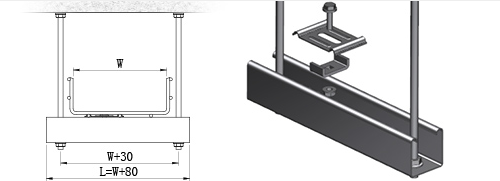

Fix the wire tray with on the threaded rod with nuts, hanging from the ceiling. Matching Length of Trapeze with width of wire tray (L=W + 80).
- Fits max M10 threaded rod.
- Can be sold individually.
| Item Name | Wire tray Width | Trapeze Length | Weight | Electroplate | HDG | Powder Coating | 304 Stainless Steel | 316L Stainless Steel | |
|---|---|---|---|---|---|---|---|---|---|
| lbs | kg | ||||||||

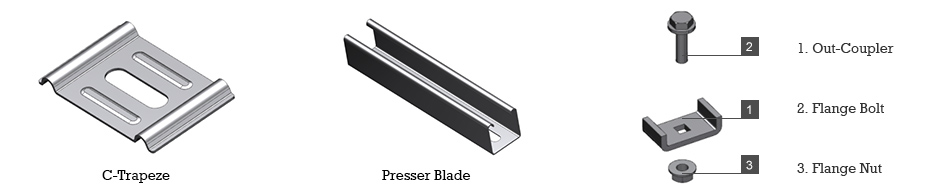

| Presser Blade | BF081 | BF082 | BF083 | BF084 | BF085 | ||||
| W100 C-Trapeze | 100 | 180 | BF411 | BF412 | BF413 | BF414 | BF415 | ||
| W200 C-Trapeze | 200 | 280 | BF421 | BF422 | BF423 | BF424 | BF425 | ||
| W300 C-Trapeze | 300 | 380 | BF431 | BF432 | BF433 | BF434 | BF435 | ||
| W400 C-Trapeze | 400 | 480 | BF441 | BF442 | BF443 | BF444 | BF445 | ||
| W500 C-Trapeze | 500 | 580 | BF451 | BF452 | BF453 | BF454 | BF455 | ||
| W600 C-Trapeze | 600 | 680 | BF461 | BF462 | BF463 | BF464 | BF465 | ||
| Out-Coupler | BF011 | BF012 | BF013 | BF014 | BF015 | ||||
| M6*20 Flange Bolt | T111 | - | - | T114 | T115 | ||||
| M6 Flange Nut | T211 | - | - | T214 | T215 | ||||
