installation

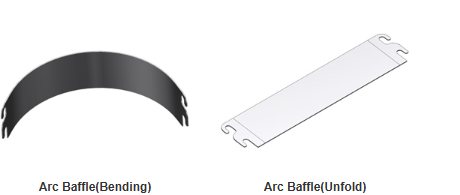

Arc Baffle

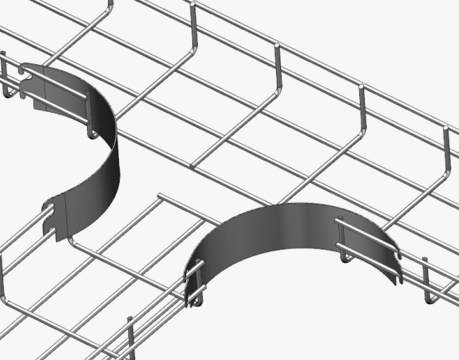

0.8mm metal plate bends and stucks in the side of straight section. For tee or cross joins in horizontal direction, quick and easy. Used to not high load-bearing connections.

  • Can be sold individually.
detail
Item Name Weight Electroplate HDG Powder Coating 304 Stainless Steel 316L Stainless Steel
lbs kg
H50 Arc Baffle  BF171BF172BF173BF174BF175
H100 Arc Baffle  BF181BF182BF183BF184BF185
H150 Arc Baffle  BF191BF192BF193BF194BF195
